Concrete Batching Plant Control Panel


PLC-SCADA BASED AUTO CONTROL PANEL WITH COMPUTER & PRINTER

Concrete Batching Plant system uses touch screen PLC technology with SCADA system to integrate all the batching functions into one integrated controller which provides real time batching control on a PLC and all in one PC. User Programmable recipes are available up to 999 numbers. A printer is attached which gives complete record in user definable format. It weights aggregate, cement, sand, water and Additive and the weights can be set in cores and fine steps. Through this systems we get delivery slip, consumption report, recipe wise reports, custom wise reports, site wise reports, truck wise reports, daily production reports, etc.



CONTROL FEATURE :

◉CBP had Features Like; Aggregate Control, Fully Auto Gradation For All $ Bins, Auto Calibration, Cement, Water & additive Control and Fully Auto Calibration

◉ SCADA had some other features like; Easy to use software, auto/manual mode, simple weighting calibration for( aggregate,cement,water,additive), online monitoring and remote operation/remote access, production reports, batch reports, daily reports, customized operator panels, low maintenence, cost efficient, reduced power consumption, solution for concrete batching plant, solution for Asphalt batching plant, designed for heavy duty operations.

RANGE OF BATCH MIX PLANT CONTROL PANEL :

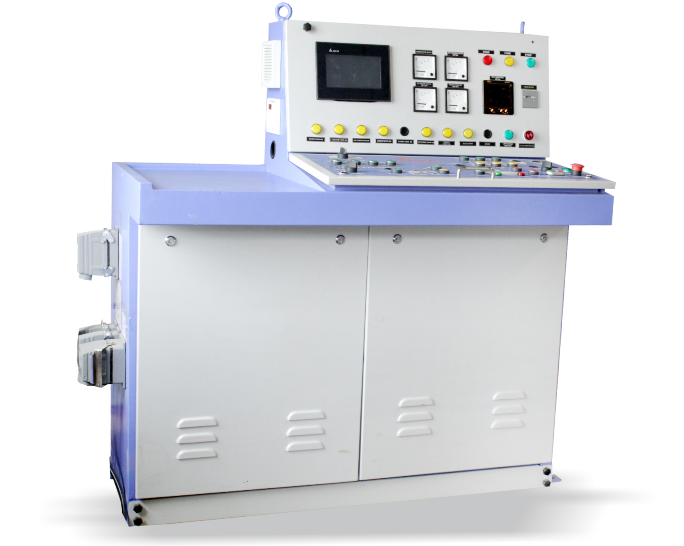

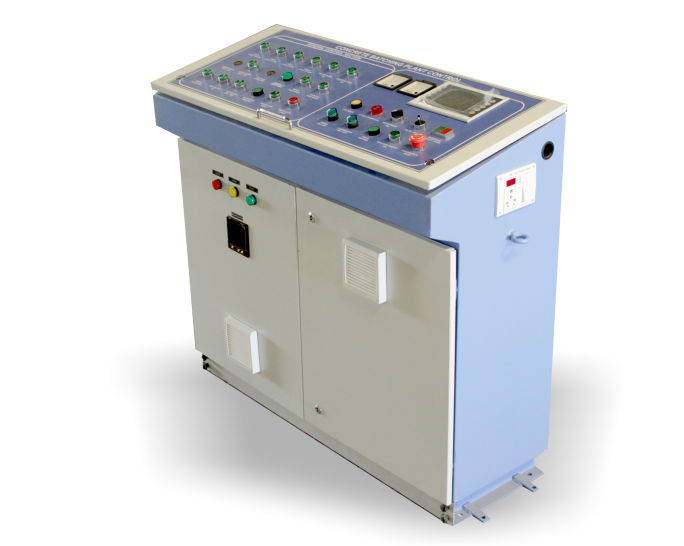

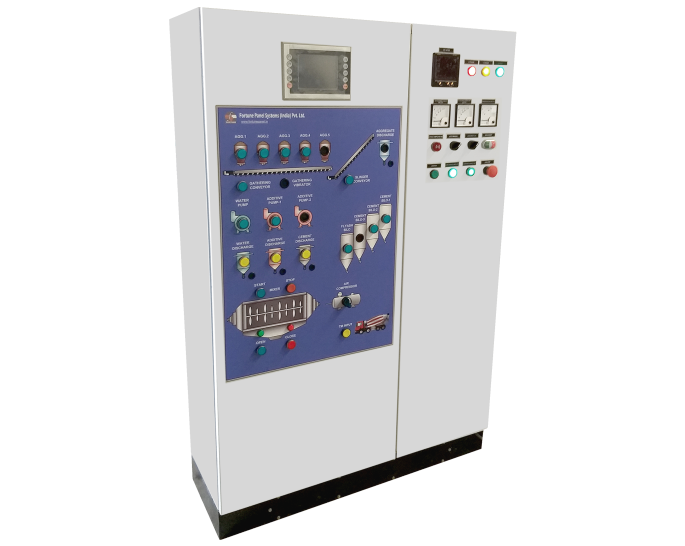

◉ Control Panel ( PLC + HMI Type ) For Concrete Batch Mix Plant

◉ Control Panel ( PLC + HMI Type ) For Concrete Batch Mix Plant With Printer

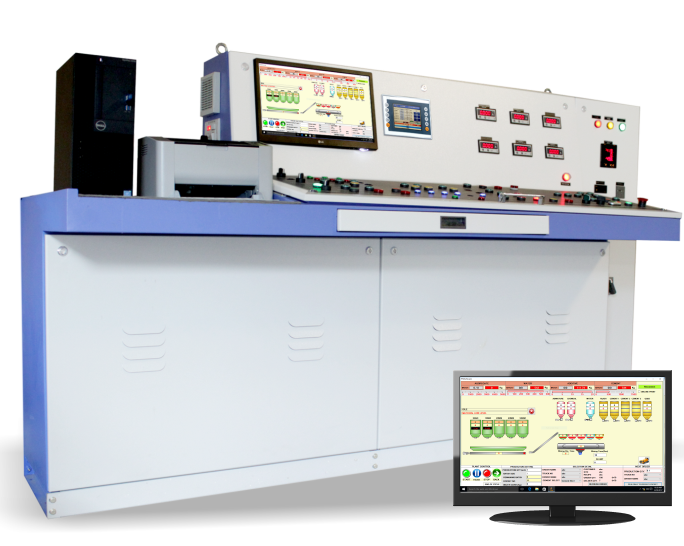

◉ Control panel ( PLC + HMI + SCADA + PC + Printer ) For Concrete Batch Mix Plant

◉ Control panel ( PLC + HMI + SCADA + Touch Screen PC + Printer ) For Concrete Batch Mix Plant
